| General Design and Manufacturer | API 609 |
| Valve Face to Face Dimensions | BS 5155 / API 609 Category B |
| Top Flange Drilling | ISO 5211 |
| Valve Inspection and Testing | BS 6755 Part-I / API 598 / EN 12266-1 |
| Flange Standard Conformity | ANSI 150 / IS 6392 NP 1.0 / 1.6 |

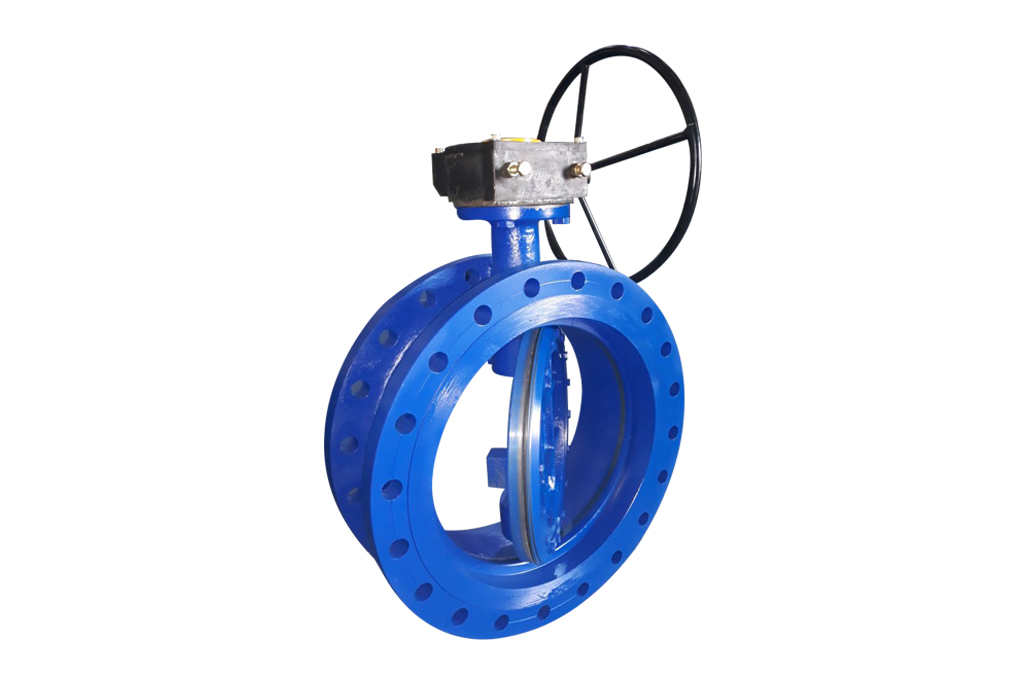

| Type of Valve | Double Ecentric Disc Butterfly Valve Body |
| Body Type | Single Piece, Double Flanged |
| Seat Type | Replaceable,PTFE Seat and Rubber Seat |
| Size Range | DN 80 TO DN 600 |
| Pressure Rating | PN 6 (DN 650 TO DN 1200) / PN 10 & PN 16 (DN 50 TO DN 600) |
| Operating Temperature Range | -25°C to 200°C (Depending on MOC) |
| Seat leakage performance | Tight Shut off |
| Operation | Hand Leaver/ Worm Gear Operation- Optional Electrical / Pneumatic actuator operation - Optional |
| Seat Temperature Range | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SEAT TYPE | TEMPERATIRE RANGE | ||||||||
| Min. | Max | ||||||||
| NITRILE | -13°F (-25°C) | 212°F (100°C) | |||||||
| EPDM | -13°F (-25°C) | 250°F (120°C) | |||||||
| SILICON | -58°F (-50°C) | 356°F (180°C) | |||||||
| VITON | -23°F (-5°C) | 392°F (200°C) | |||||||
| HYPALON | -4°F (-20°C) | 250°F (120°C) | |||||||
