| General Design and Manufacturer | AWWA C-504 |
| Valve Face to Face Dimensions | AWWA C-504 |
| Top Flange Drilling | ISO 5211 |
| Valve Inspection and Testing | AWWA C-504 |
| Flange Standard Conformity | ANSI 150 / ANSI 125 / BS 10 TAB D & E |
| IS 6392 NP 0.6 / 1.0 / 1.6 |

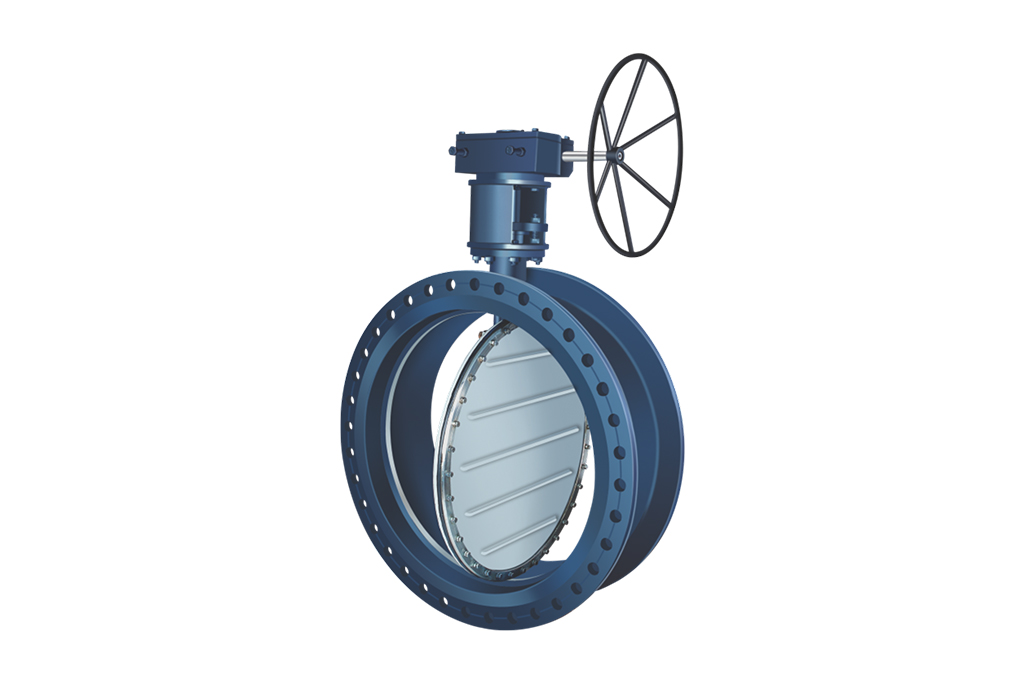

| Type of Valve | Ecentric Disc Fabricated Butterfly Valve Body |
| Body Type | Single Piece,Double Flanged |
| Seat Type | Replaceable |
| Size Range | DN 600 TO DN 1600 |
| Pressure Rating | PN 6 & PN 10 (DN 600 TO DN 1600) |
| Operating Temperature Range | -25°C to 200°C (Depending on MOC) |
| Seat leakage performance | Tight Shut off |
| Operation | Worm Gear / Electrical / Pneumatic actuator operation - Optional |
| Seat Temperature Range | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SEAT TYPE | TEMPERATIRE RANGE | ||||||||
| Min. | Max | ||||||||
| NITRILE | -13°F (-25°C) | 212°F (100°C) | |||||||
| EPDM | -13°F (-25°C) | 250°F (120°C) | |||||||
| SILICON | -58°F (-50°C) | 356°F (180°C) | |||||||
| VITON | -23°F (-5°C) | 392°F (200°C) | |||||||
| HYPALON | -4°F (-20°C) | 250°F (120°C) | |||||||
