Two Way Ball Valves

Single / Three Piece Design, Full Bore / Regular (Reduce) Bore Two Way

Flow Control System Controls mfg. High performance Ball Valve as per international design and standard to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service. These Ball Valves come in Single Piece (1/2 to 4) / Two Piece (1 to 8) as well as in Three Piece Design (1/2 to 12) to suit various critical, non-critical applications and pressure rating up to 1500 class in both full bore & regular (reduce) bore design.

Flow Control System P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

Single Piece Design Screwed End Ball Valve (Full Bore)

Three Piece Design Screwed End Ball Valve (Full Bore)

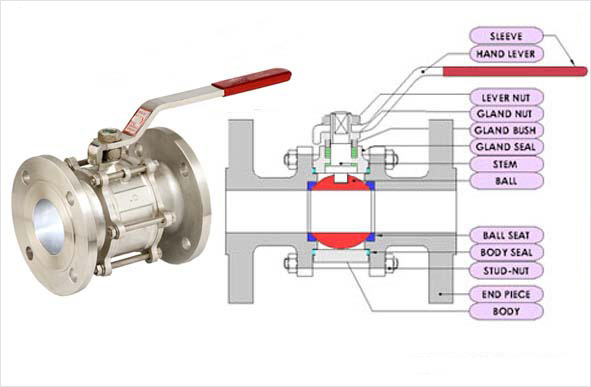

Three Piece Design Flanged End Ball Valve (Reduce / Full Bore)

Salient Features:

High Performance Ball Valve
Longer Life
Positive Shut off
Quick in Action
No Lubrication
Compact Design
Low Pressure Drop
Visual Open / Close Indication Simplicity

Special Options:

Extended Bonnet Type
Partial / Full Jacketed Ball Valve
Handle Locking Arrangement
P.T.F.E. (PFA / FEP) Lined Ball Valve
Flush Bottom Design Ball Valve
Multiport Ball Valve (Three Way / Four Way)
Polypropylene Material Ball Valve
Tri-Clover End Ball Valve
Pneumatic Rotary Actuator Operated Ball Valve
Tailor Made Ball Valve

Material of Construction:

Cast Iron	: IS 210 Gr FG 200
Cast Carbon Steel	: ASTM A 216 Gr WCB
Cast Stainless Steel	: ASTM A 351 Gr CF 8/CF 8M
Seat, M. O. C. Of Seat	: Nitrile, Neoprene, EPDM, Hyplon, PTFE
End Connection	: Screwed AS PER BSP/BSPT/NPT
Socketweld	: AS PER ANSI B 16.11
Flanged	: AS PER ANSI B 16.5
Pressure Rating	: ASA 125#, 150#, 800#
Engineering Option	: Gear Operated, Electrical Actuated, Pneumatic Actuated
Size Range	: 6 mm to 150 mm

Design & Testing International Standard:

Valve Design	: BS 5351 / ANSI B 16.34 / API 6D
Pressure Testing	: BS 6755 Part II / API 598 / API 6D
Fire Safe Testing	: BS 6755 Part II API 607 / API 6FA /
Face To Face	: ANSI B 16.10
Flange Drilling	: ANSI B 16.5 / BS 10 Table / DIN / IS 6392
Butt Weld End	: ANSI B 16.25
Socket Weld End	: ANSI B 16.11
Screwed End	: ANSI B 1.20.1(BSP/NPT)
